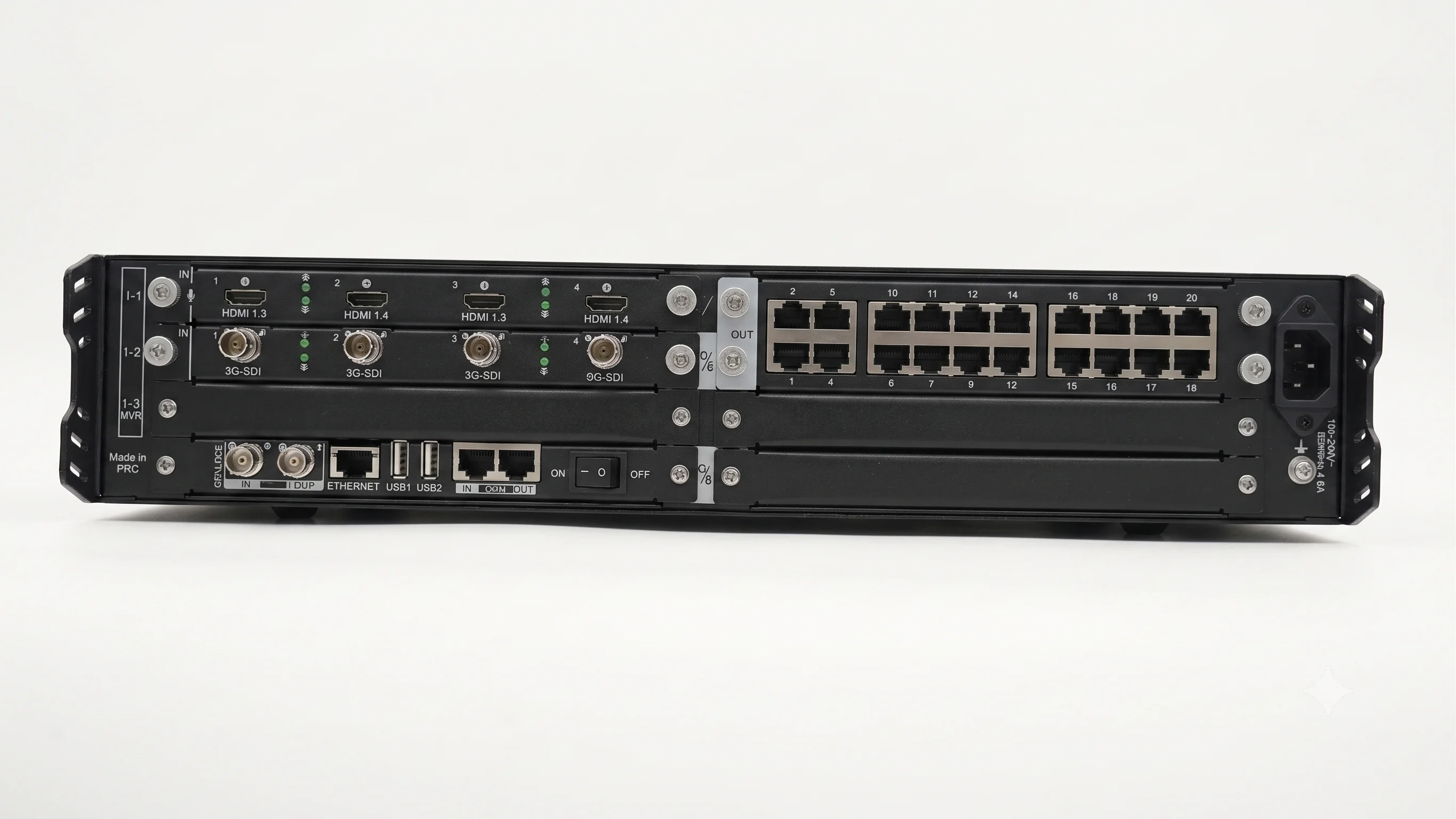

NVS 2K ULTRA
NVS 2K ULTRA
| • Power Connector: | 100~240V~, 50/60Hz |
| • Power Consumption: | 82 W |
| • Operating Temperature: | 0°C to 50°C |
| • Operating Humidity: | 5% RH to 85% RH, non-condensing |
| • Storage Temperature: | −10°C to +60°C |
| • Storage Humidity: | 5% RH to 95% RH, non-condensing |
| • Dimensions: | 482.6 mm × 409.0 mm × 94.6 mm |
| • Net Weight: | 7 kg |
| • Gross Weight: | 10 kg |
| • Carrying Case Size: | 625 mm × 560 mm × 195 mm |
| • Packing Box Size: | 645 mm × 580 mm × 215 mm |
| • Noise Level: | 45 dB (A) |
| • Chassis: | 2U |
| • Input Cards: | 1 |
| • Input Channels: | 16 |
| • Output Cards: | 2 |
| • Loading: | 26M px |
| • Layers: | 32 |
| • Power: | 210W |
| • Size: | 482.6×88.1×252.8 mm |
| • Weight: | 15.5 kg |
Overview
- •NVS 2K ULTRA is a flagship all-in-one advertising LED display screen controller that integrates advanced video processing and control into a single ultra-powerful device for large-scale applications
- •Designed for next-generation LED video wall display systems, it delivers exceptional clarity, synchronization, and performance across ultra-wide and ultra-high resolution displays
- •Capable of managing up to 13 million pixels, making it ideal for mega installations, broadcast environments, large events, and fine-pitch LED display systems
- •Equipped with 20 Ethernet ports to support massive data transmission and handle extremely complex and high-density display configurations
- •Built with an industrial-grade architecture to ensure stable, continuous, and reliable performance in mission-critical and high-demand environments
