NVS 1000
NVS 1000
| • Power Connector: | 100-240V~, 50/60Hz |
| • Power Consumption: | 43 W |
| • Operating Temperature: | 0°C to 50°C |
| • Operating Humidity: | 5% RH to 85% RH, non-condensing |
| • Storage Temperature: | −10°C to +60°C |
| • Storage Humidity: | 5% RH to 95% RH, non-condensing |
| • Dimensions: | 482.6 mm × 302.2 mm × 50.1 mm |
| • Net Weight: | 3.9 kg |
| • Gross Weight: | 6.5 kg |
| • Carrying Case Size: | 545 mm × 425 mm × 145 mm |
| • Packing Box Size: | 565 mm × 450 mm × 175 mm |
| • Noise Level: | 45 dB (A) |
Overview
- •NVS 1000 is a flagship all-in-one advertising LED display screen controller that combines advanced video processing and control capabilities into a single high-performance device
- •Designed for ultra-large and complex LED video wall display systems, it delivers exceptional clarity, synchronization, and stability across massive screen setups
- •Capable of handling up to 6.5 million pixels, making it ideal for high-end rental, large-scale events, broadcast environments, and fine-pitch LED installations

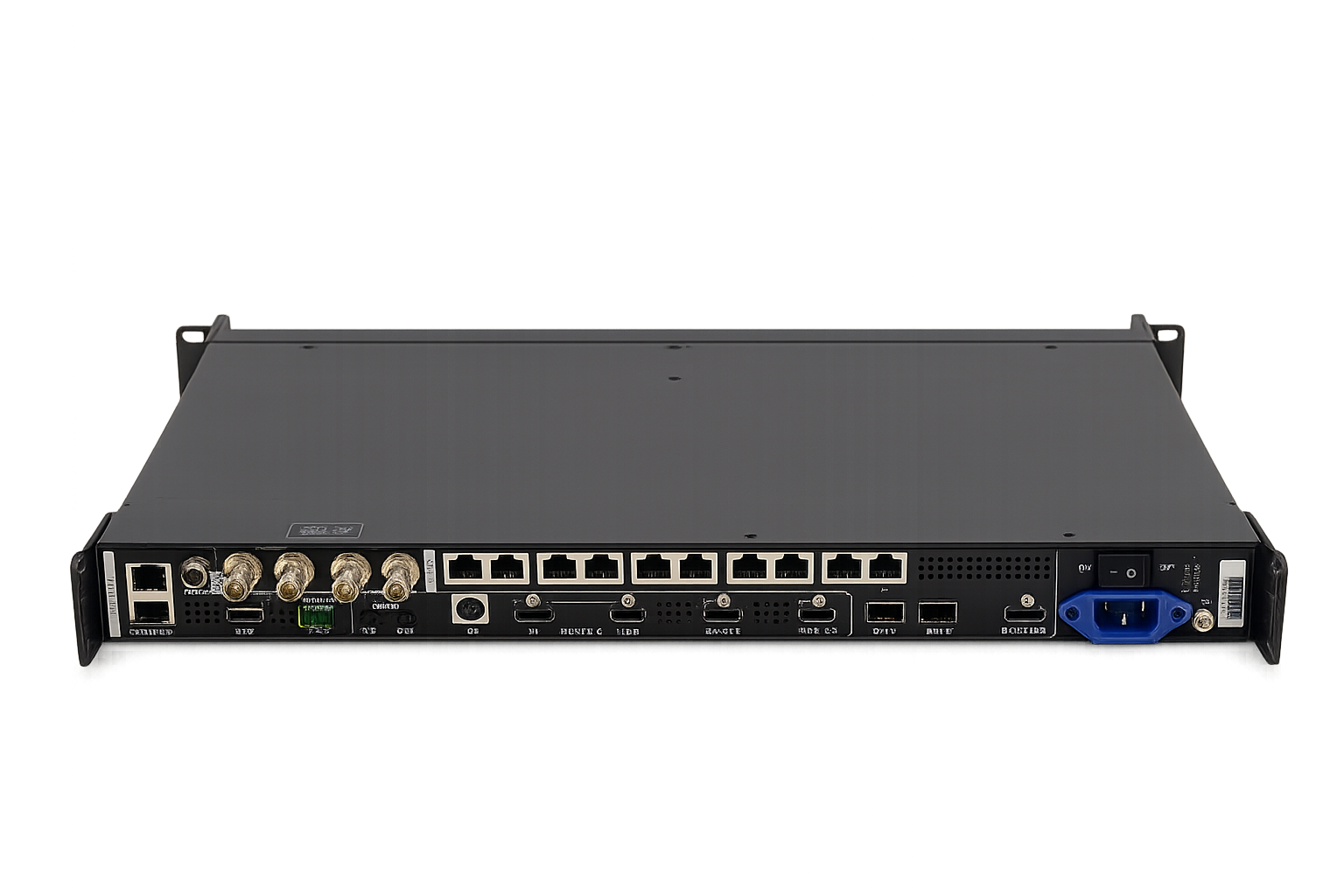

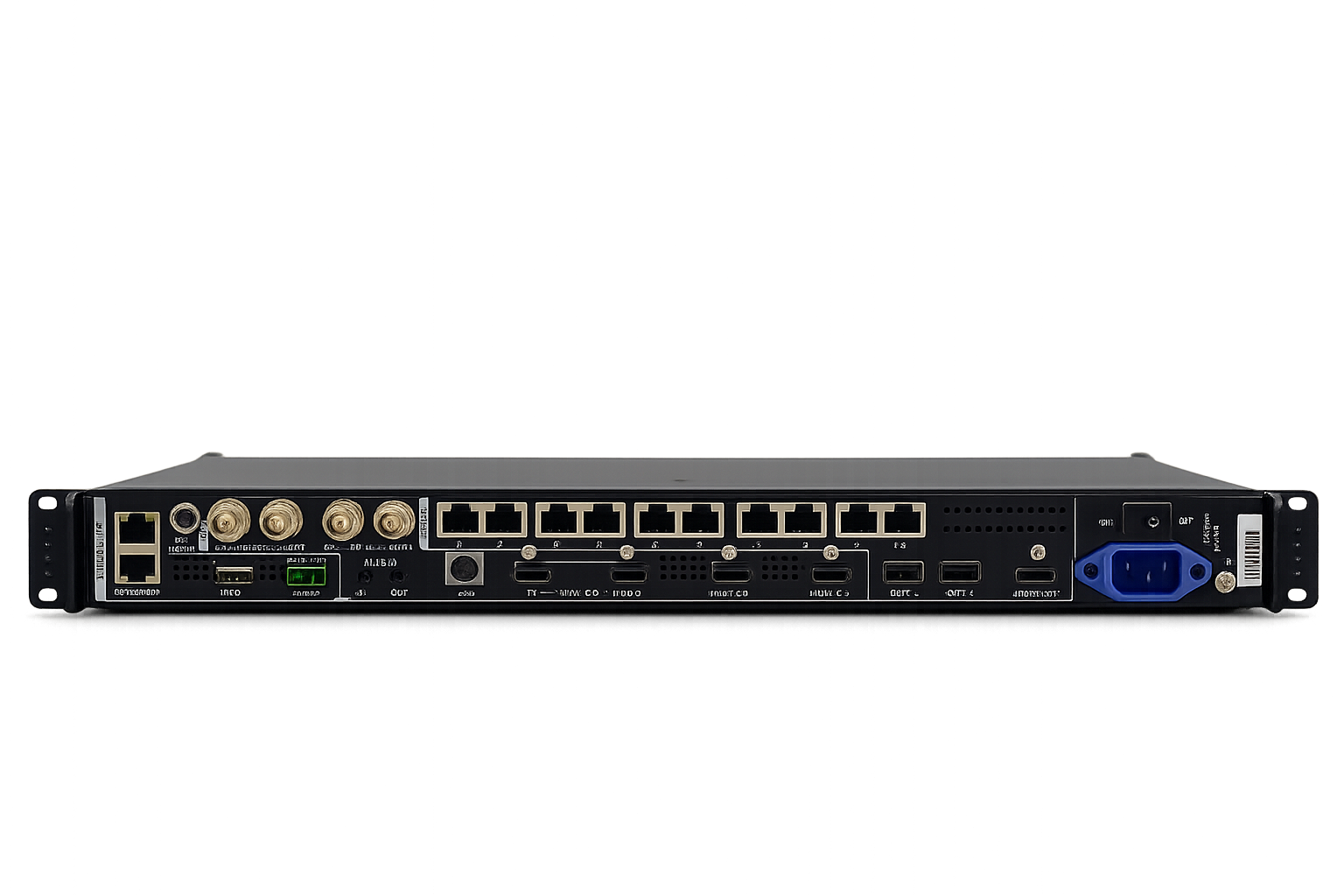

- •Equipped with 10 Ethernet ports to support extensive data transmission and manage highly demanding display configurations efficiently
- •Built with a robust industrial-grade design to ensure reliable, continuous performance in mission-critical and high-load environments
